 Optical cable Series >> Outdoor Optical Cable >> GYFXY Unitube Non-armored Cable

Name£º

Model£º

Class£º
GYFXY Unitube Non-armored Cable

GYFXY Unitube Non-armored Cable

Optical cable Series---Outdoor Optical Cable



PRODUCT DETAILS--SEIKO OPTICAL


GYFXY Unitube Non-metallic Non-armored Cable Description£º

The fibers,125um,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.Over the tube,Water-blocking material is applied to keep the cable watertight.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side.The cable is completed with a polyethylene(PE) sheath.

Characteristics£º

Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Two parallel FRPs ensure tensile strength;
PE sheath protects cable from ultraviolet radiation;
Small diameter,light weight and friendly installation;
Long delivery length.

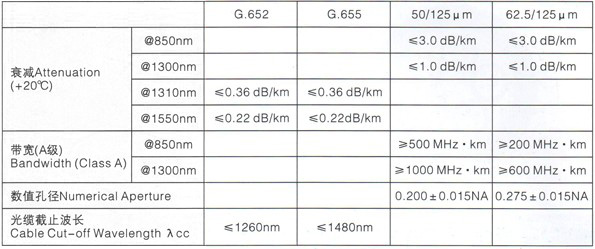

Optical Characteristics:

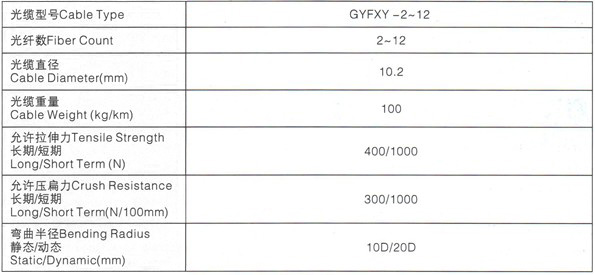

Technical Parameters:
